Building 101 Facilities Manager Dashboard

This interface was designed with PI Processbook for facility managers to monitor the thermal conditions and diagnose indoor environmental quality issues in Building 101, an office facility.

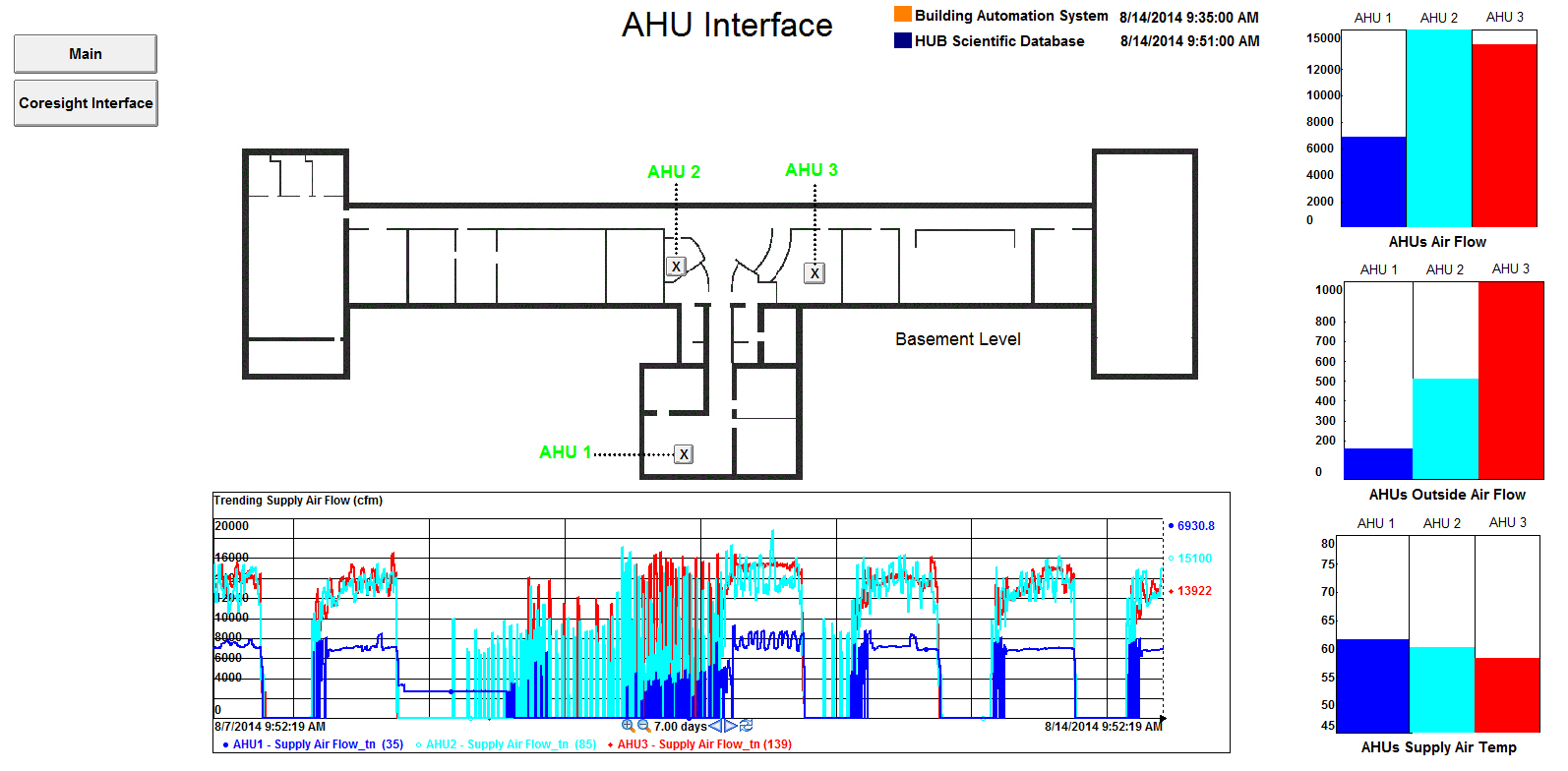

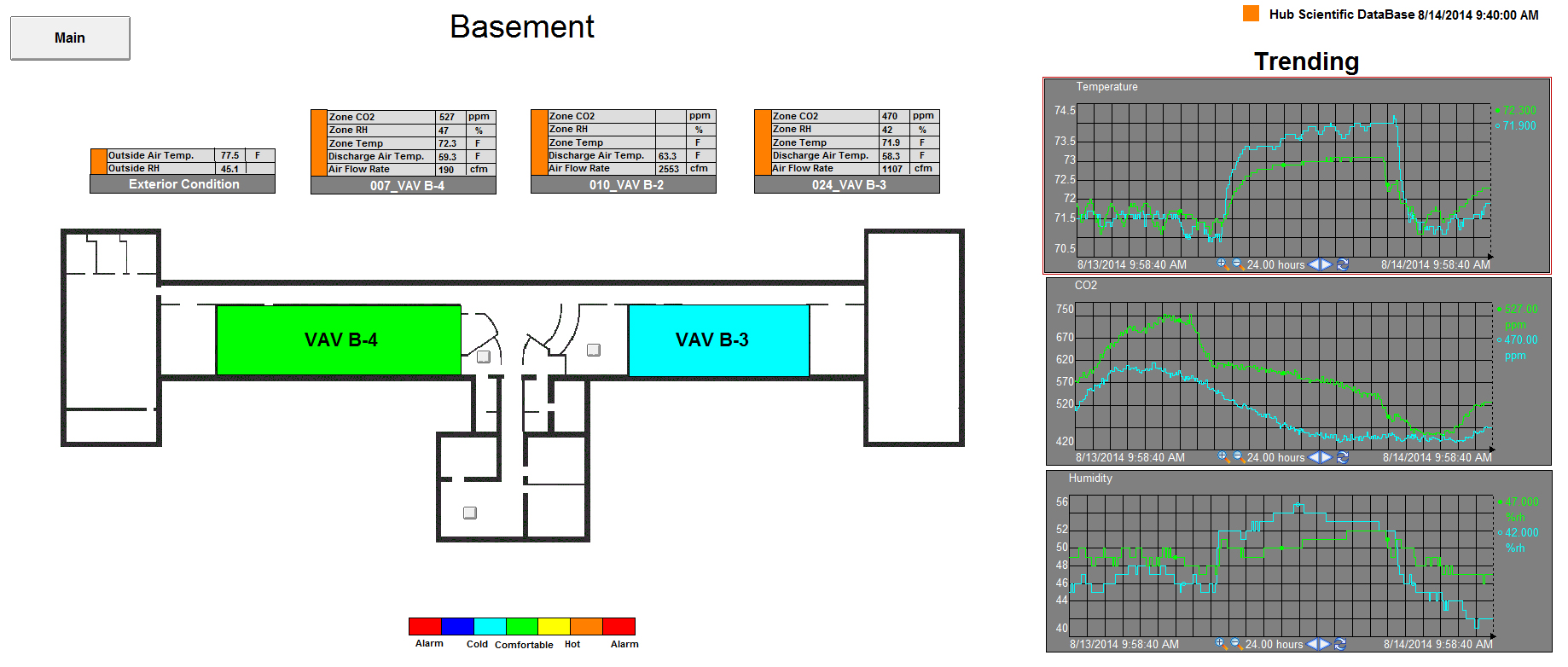

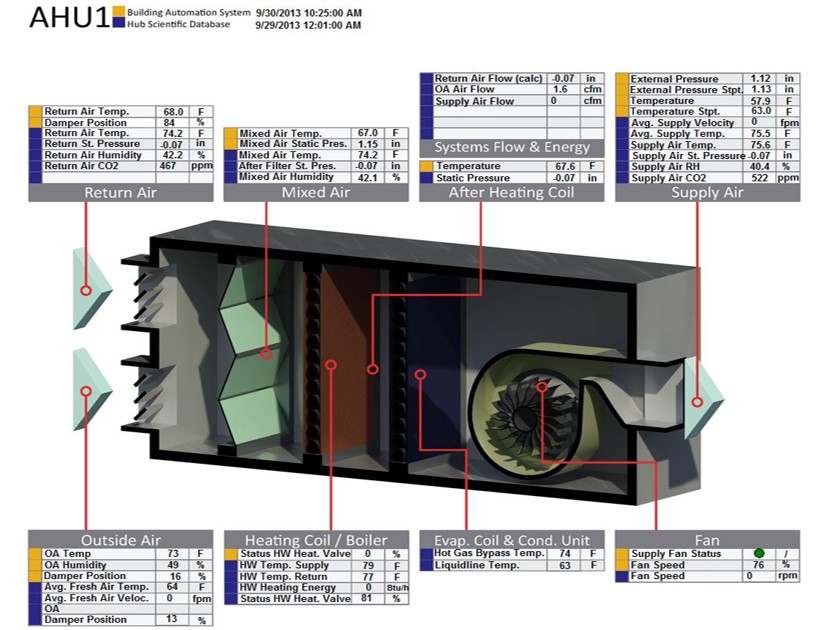

The color mapping of the floor plans easily conveys the temperature of each zone. Each zone is linked to a display of sensored trending data including air flow, temperature, carbon dioxide and humidity from the air handling unit (AHU) serving that zone.
